Clayton Boyer Clock Designs



Weird Gears



"Weird Gears" plans contains the plans to make the following gears:

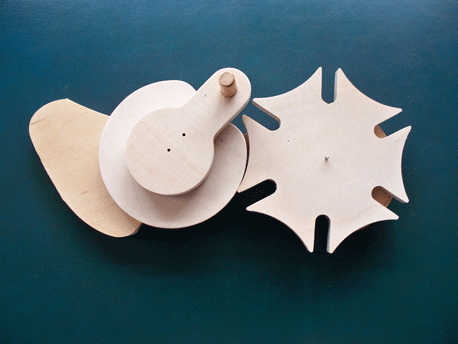

Also included are plans for a 12 sided Geneva wheel, designed by my artist friend Forrest, that can be used as a dial train on a clock.

See other builders' interpretations of my Weird Gears plans here: Weird Gears Flickr Pool

And by the way, if you're interested in making your own gear designs, you may enjoy my YouTube video linked here: "How to Make Organically-Shaped Gears." Enjoy!

Weird Gears plans are available in THREE different formats. Please choose only one option:

New! Instant Auto-Download

The auto-download contains BOTH pdf and dxf plans for Weird Gears:

Hand builders will use the pdf file.

Electronic builders will use the complete dxf and the dxf cutting files.

You do not need a Paypal account to purchase this plan--just use the "pay with credit or debit" option when you get the payment page. The price of the auto-download plan is $25.00:

OR:

Paper

The price of the paper plan delivered by mail is $28.00 plus shipping. If you would like to purchase Weird Gears paper plans by mail (our usual method), click here:

OR:

dxf Format delivered via eMail

If you would like to purchase electronic plans in dxf format and receive them via email, you must:

1. Have a CAD program that can read dxf's.

2. Have a valid email address that can receive a 5 MB attachment. Add moalanikai@yahoo.com to your safe senders list so we don't end up in your spam filter.

If you prefer the dxf/email option, you will not receive a paper copy by regular mail. Plans purchased with the dxf option will be delivered to your inbox as an email attachment after payment is received, usually within 24 hours. The price of the dxf plan delivered via email is $25.00.To purchase dxf plans via email for Weird Gears by credit card, click below:

Pay with PayPal, PayPal Credit or any major credit card
